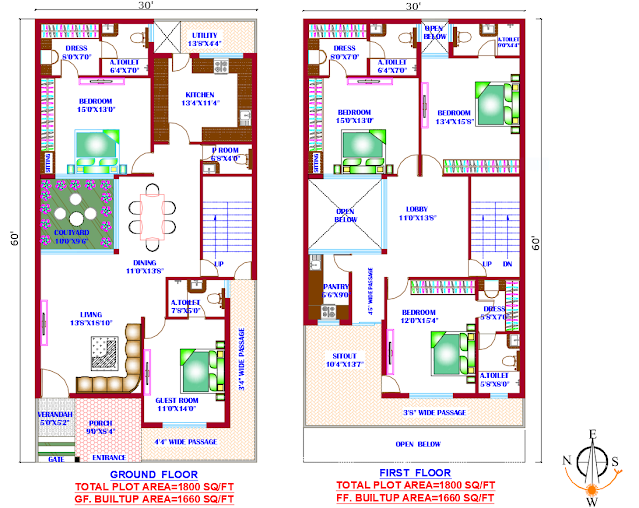

House plan for West facing 5bhk duplex house Plan . Plot size 30'-0"x60'-0" feet Total 1800 sq/ft house plan If you are in need of plan for 5bhk duplex house. This article provide detailed. 5BHK duplex house plan design that you can explore and choose from your requirements.
House plan for residential building 5BHK for vastu plan 5 Bedroom house Plan are given article. This is used for residential building. Total plot area 1800 sq/ft house plan building . The length and width of plot 30’-0"x60'-0'’ respectively .Total plot area 1800 sq/ft The constructed ground floor built-up area 1660 sq/ ft specific.

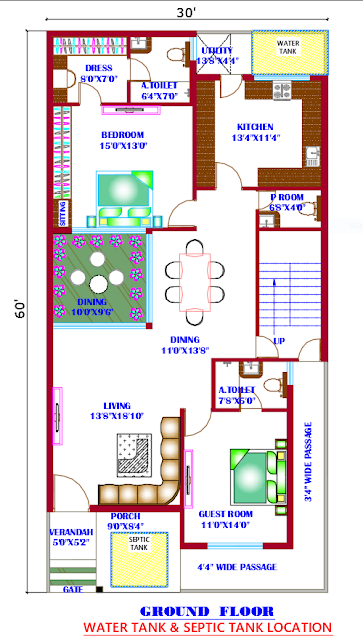

The septic tank and underground water tank is provide as per vastu shastra principles.

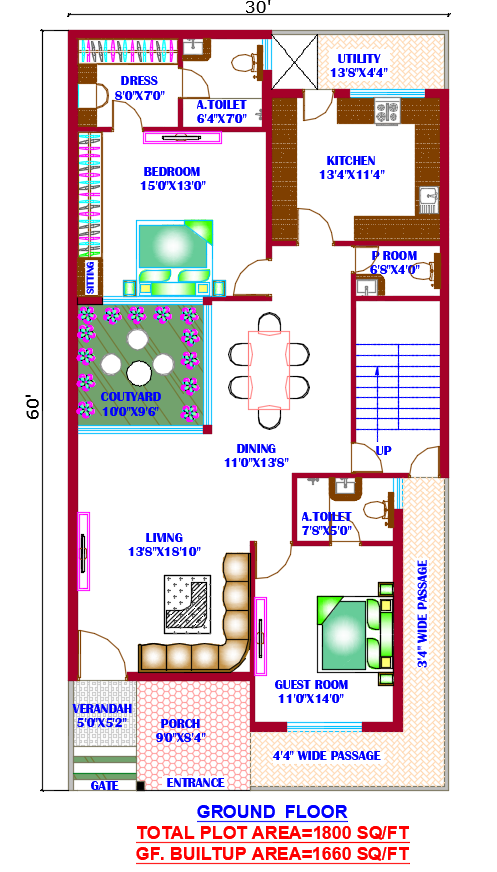

Ground floor detailed IN the above image 2BHK Ground floor layout is given on this floor plan. The, LIVING ROOM cum DINING AREA are available, KITCHEN with UTILITY AREA , BEDROOM-1 with DRESSING ROOM and A.TOILET , BEDROOM-2 with A.TOILET includes COUTYARD , POWDER ROOM , VERANDAH , PORCH made for small bike parking, PASSAGE AREA in Front , DOG-LEGGED staircase use for stair outer and inner side are available .
In this 2BHK Ground floor plan. Ground floor area Requirements :- The dimension of the Living area 13'-8"X18'-10". The dimension of Dining area 11'-0"X13'-8" . The dimension of the Kitchen area 13'-4"X11'-4". The dimension of the Bedroom-1 area 15'-0"X13'-0" . The dimension of the Bedroom-1 attached Dressing area 8'-0"X7'-0". The dimension of the Bedroom-1 attached Toilet area 6'-4"X7'-0".
The dimension of the Bedroom-2 area 11'-0"X14'-0"
The dimension of the Bedroom-2 attached Toilet area 7'-8"X5'-0".
The dimension of the Power Room area 6'-8"X4'-0. The dimension of the Porch area 9'-0"X8'-4". The dimension of the Utility area 13'-8"X4'-4" . The dimension of the Verandah area 5'-0"X5'-2" . The dimension of the Coutyard area 10'-0"X9'-6" The dimensions of Passage as per Plot area .
In this Plan west facing 2BHK Ground floor house. The PORCH area is provide in North -West corner. The KITCHEN area is provide in South - East facing direction . The UTILITY area is provide with kitchen attached. The Living cum dining area is provide in the main space for plot direction. The Bedroom-1 is provide in the North-East corner . The Bedroom-1 attached Dressing room is provide in the North - East corner . The Bedroom-1 A.Toilet is provide in the East direction .
The Bedroom-2 is provide in theSouth-West corner .
The Bedroom-2 A.Toilet is provide in the South direction .
The Dining area is provide in the main space for plot . The Staircase provide in the is South facing as per Vastu according . The Power room is provide in the South direction.

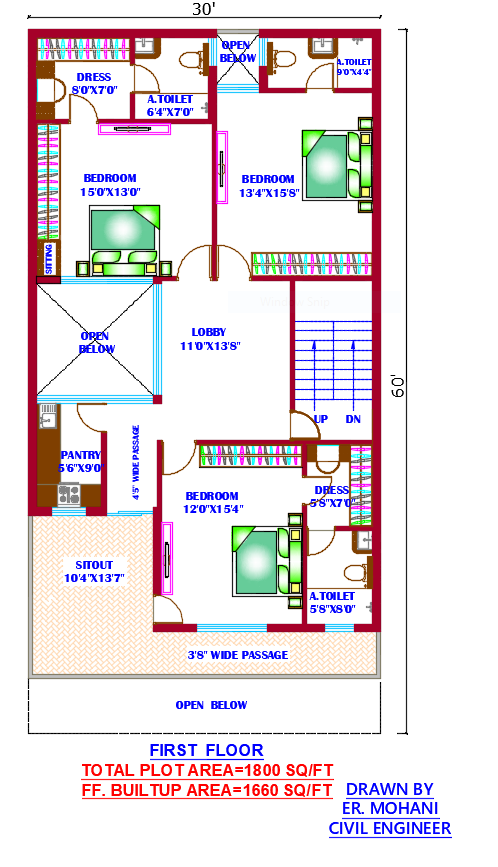

First floor detailed :- In this First Floor plan above image a 1800 sq/ ft . West facing house plan first floor layout is given. This is a 3-Bedroom , Lobby, Pantry and Sitout as per client requirements. This plan residential building first floor detailed .
On this best West facing house plan the Lobby with Pantry , BEDROOM-1, with DRESS and ATTACHED TOILET, BEDROOM-2, with DRESS and ATTACHED TOILET, BEDROOM -3 with ATTACHED TOILET . SITOUT is available The total BUILT-UP area first floor of this 1660 sq/ft.
In this 3-Bedroom WITH Lobby with Pantry floor plan. FIRST FLOOR area Requirements :- The dimension of the Lobby area 11'-0"X13'-8".
The dimension of the Bedroom-1 area 15'-0"X13'-0" . The dimension of the Bedroom-1 attached Dressing area 8'-0"X7'-0". The dimension of the Bedroom-1 attached Toilet area 6'-4"X7'-0".
The dimension of the Bedroom-2 area 12'-0"X15'-4"" . The dimension of the Bedroom -2 attached Dressing area 5'-8"X8'-0"
The dimension of the Bedroom-3 A. Toilet area 13'-4"X15'-8". The dimension of the Bedroom-3 attached toilet area 9'-0"X4'-4" . The dimension of the Panty area 5'-6"X9'-0". The dimensions of the Sitout area 10'-4"X13'-7" .
In this 3-Bedroom , Lobby, Pantry and Sitout as per client requirements First floor house. The SITOUT area is provide in North - West corner. The Lobby area is provide in the main space for Plot. The Bedroom-1 is provide in the North -East direction . The Bedroom-1 attached Toilet is East direction. The Bedroom-1 attached Dressing room is North - East corner. The Bedroom-2 provide in the South - West direction. The Bedroom-2 attached toilet is West direction.
The Bedroom-2 attached Dressing room is South direction
The Bedroom-3 provide in the South - East direction.
The Bedroom-3 attached toilet is South -East corner .
The Staircase provide in the is South as per Vastu according. The Pantry provide in the North direction.
Conclusion :- House plan and elevation design releted to these keywords like plan for 5bhk duplex house plan 1800 sq/ft house plan. The best West facing floor plan and other can be obtained from the website.
